CK6180

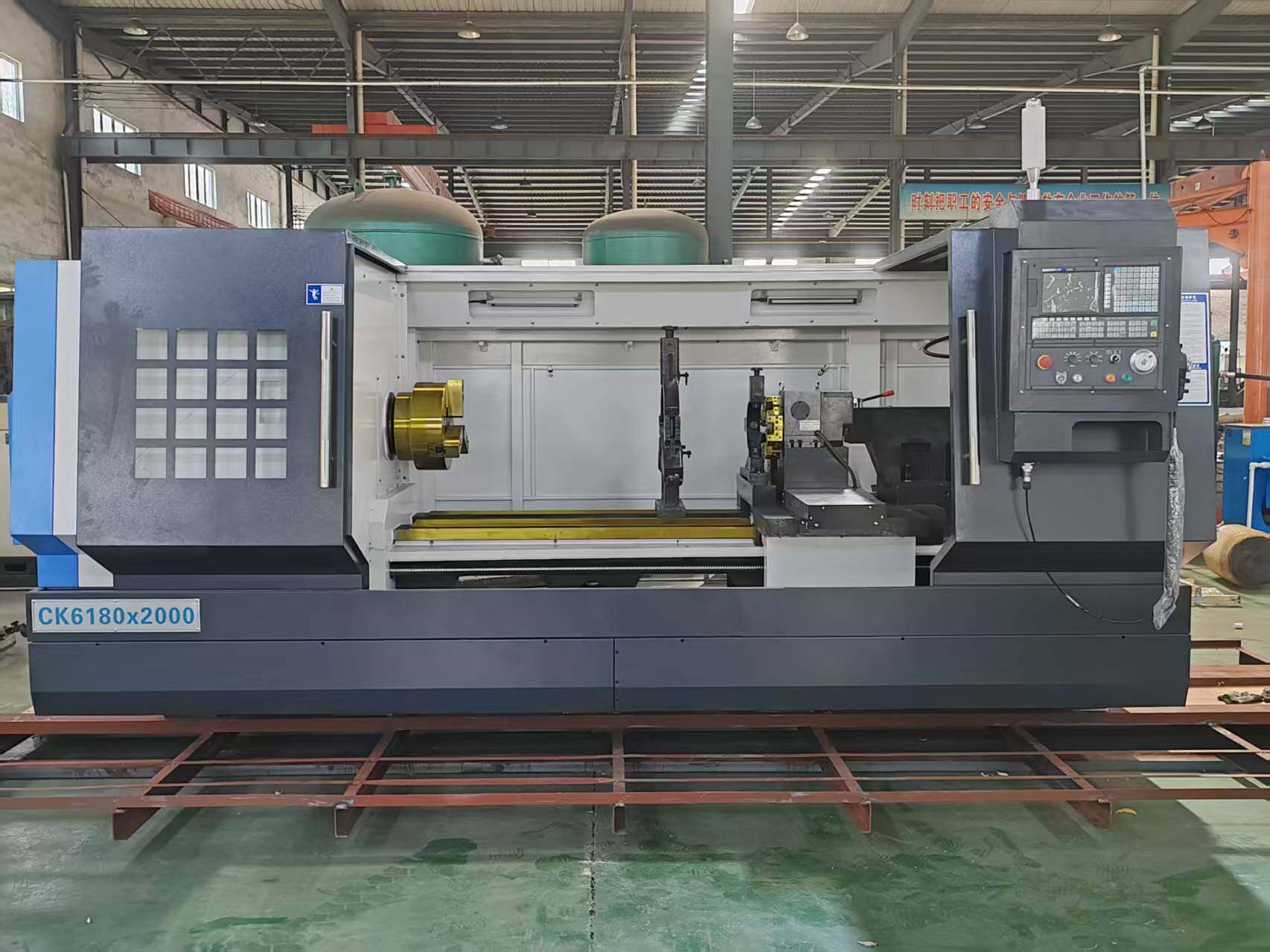

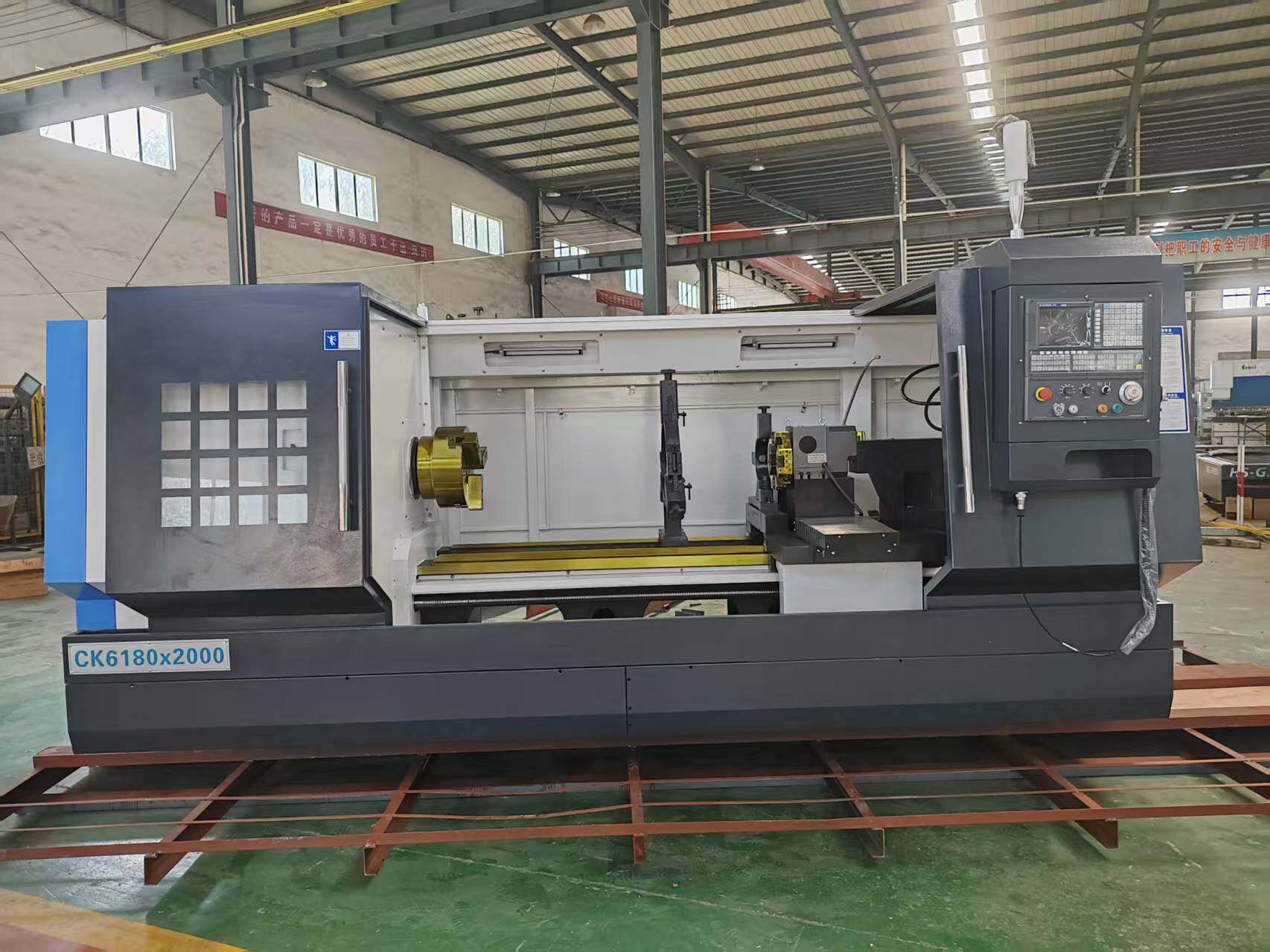

Heavy Duty CNC Lathe CK6180
High load capacityBox way rigidityLarge bore option
Heavy duty turning center for large flanges, rollers and energy equipment components.
Ø800 mm
Swing
1500 mm
Turning Length
1600 rpm
Spindle
Technical Specifications
- Max. Swing Over Bed
- Ø800 mm
- Max. Turning Length
- 1500 mm
- Max. Turning Diameter
- Ø800 mm
- Spindle Speed
- 1600 rpm
- Spindle Bore
- Ø105 mm
- Spindle Nose
- A2-8
- Rapid Traverse X / Z
- 10 / 12 m/min
- Turret Stations
- 4 stations
- Tailstock
- Hydraulic tailstock
- Chuck
- 4-jaw chuck Ø500 mm
- Positioning Accuracy
- ±0.008 mm
- Repeatability
- ±0.004 mm
- Main Motor Power
- 15 kW
Standard Configuration
- Full enclosure guard with safety interlocks
- Automatic lubrication system
- Coolant system and chip tray
- Hydraulic tailstock
- Work light and foot switch
- Tool holder set
Optional Configuration
- Bar feeder interface
- Live tooling turret with C axis
- Automatic tool setter
- Chip conveyor
- Fanuc / Siemens / Mitsubishi control system
- Steady rest and follow rest
Service & Warranty
12-Month Warranty
Covering machine structure, spindle and control system from commissioning date.
Spare Parts Supply
Common wear parts in stock, dispatched within 48 hours after confirmation.
Remote Diagnosis
Video-guided troubleshooting and parameter support across time zones.
Installation & Training
Overseas commissioning, accuracy verification and operator training available.
