HMC1000

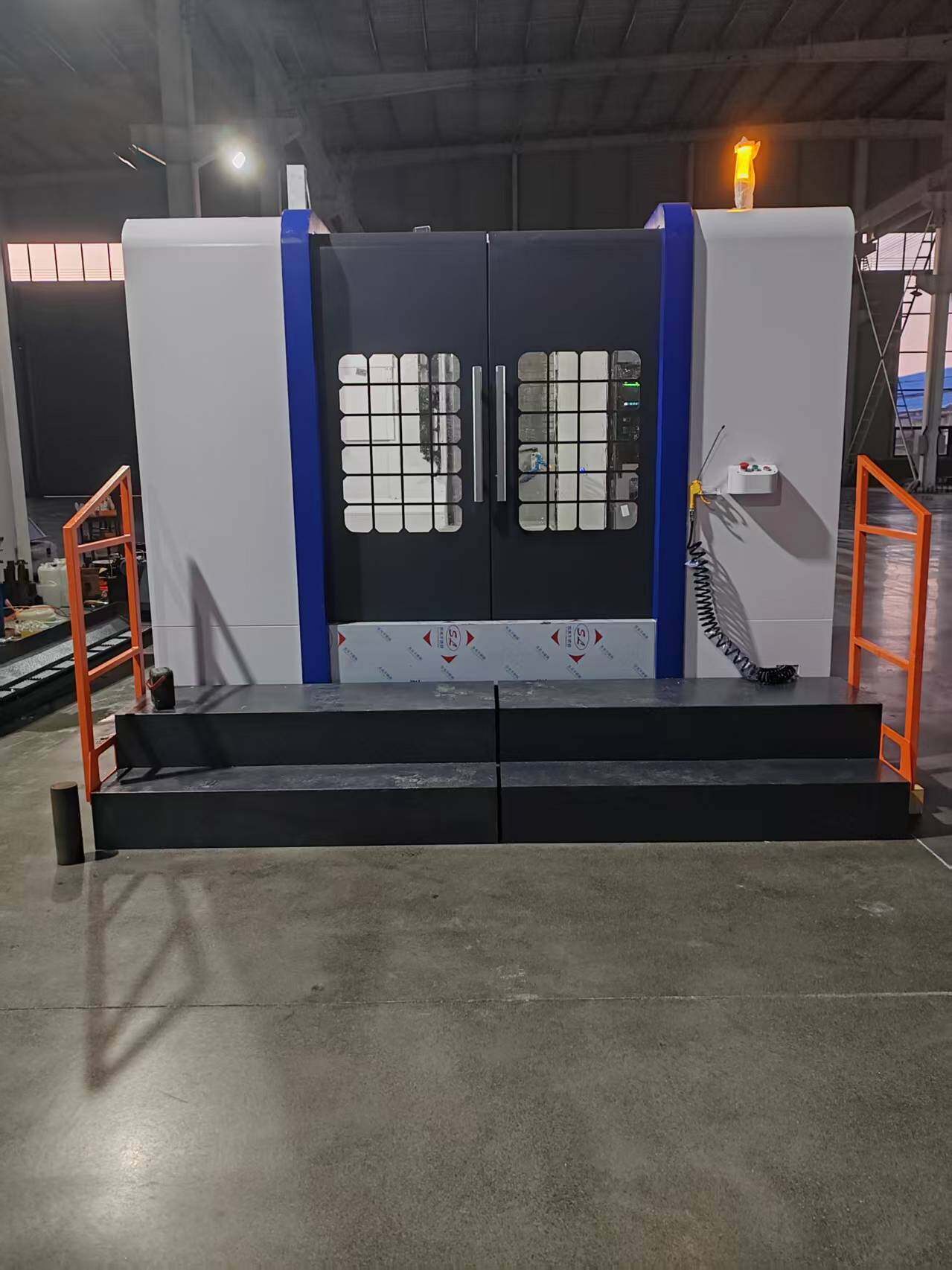

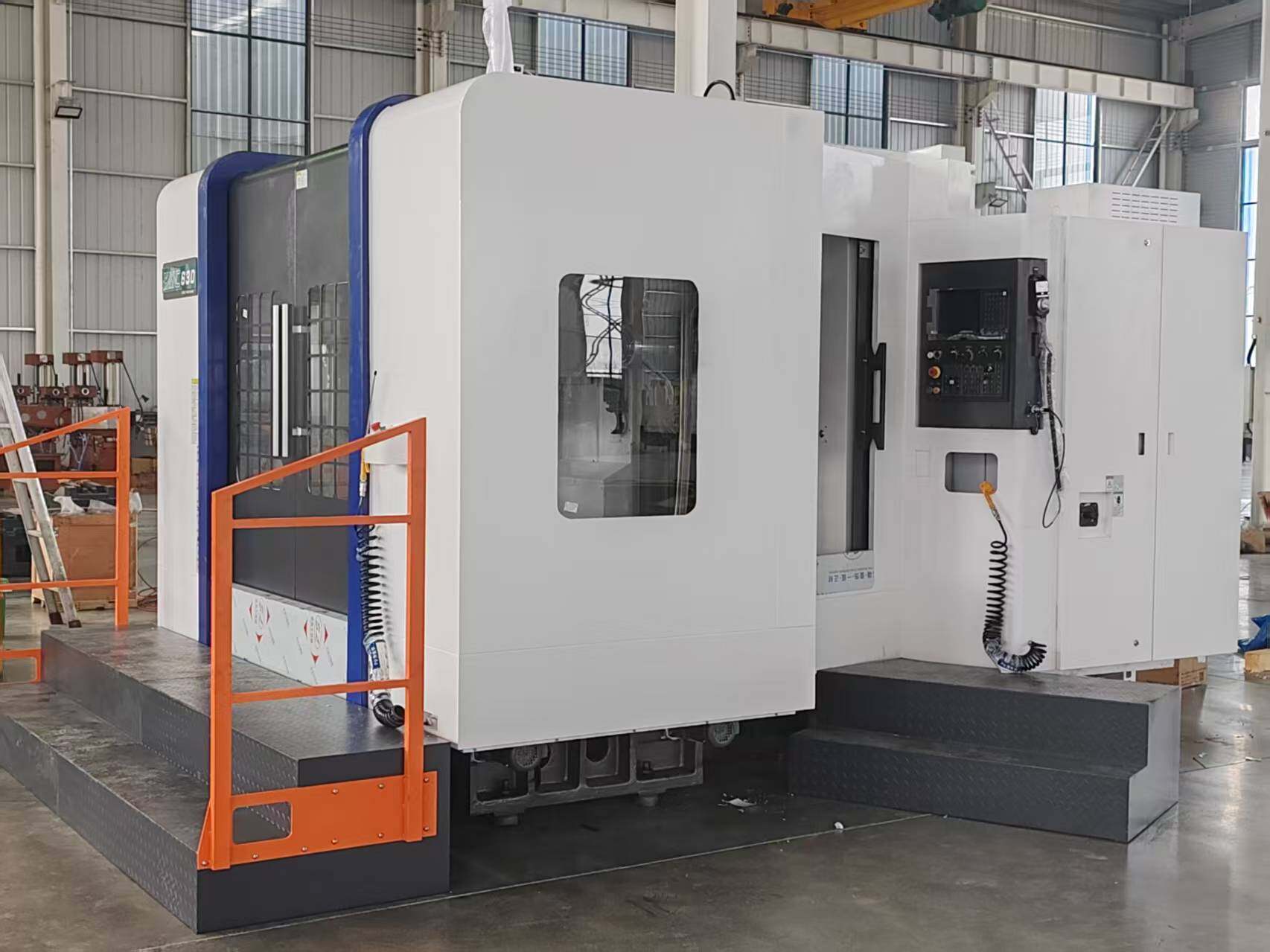

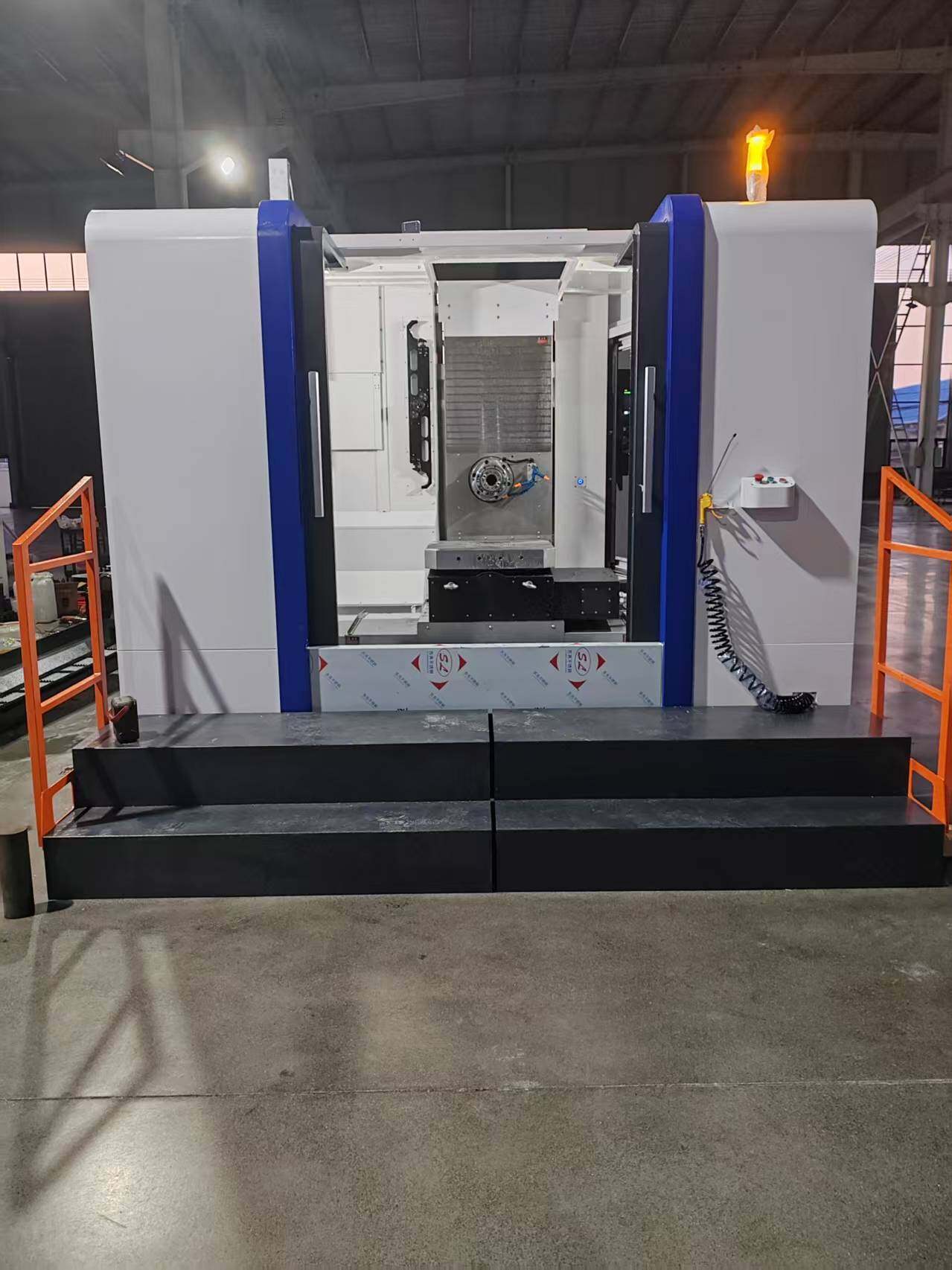

Horizontal Machining Center HMC1000
4-face machining in one setup800 × 800 mm palletBT50 high torque spindle
Pallet type horizontal machining center with 1000 mm X travel for multi-face machining in production cells.
1000/800/800 mm
Travel X/Y/Z
6000 rpm
Spindle
800 × 800 mm
Pallet
Technical Specifications
- X Axis Travel
- 1000 mm
- Y Axis Travel
- 800 mm
- Z Axis Travel
- 800 mm
- Spindle Speed
- 6000 rpm
- Spindle Taper
- BT50
- Spindle Motor
- 22 / 30 kW
- Rapid Traverse X/Y/Z
- 20 / 20 / 16 m/min
- Table Size
- 800 × 800 mm pallet
- Max. Table Load
- 1,200 kg
- Positioning Accuracy
- ±0.008 mm
- Repeatability
- ±0.004 mm
- Tool Magazine
- 60 tools, arm type
Standard Configuration
- Built-in rotary table (B axis)
- Arm type tool magazine
- Linear guideways on all axes
- Chip conveyor and coolant system
- Full enclosure with interlocked doors
- Automatic lubrication and work light
Optional Configuration
- Double pallet changer
- 60 / 90 tool magazine
- Through-spindle coolant 20 bar
- Workpiece probe and tool probe
- Fanuc / Siemens / Mitsubishi control system
- Spindle chiller
Service & Warranty
12-Month Warranty
Covering machine structure, spindle and control system from commissioning date.
Spare Parts Supply
Common wear parts in stock, dispatched within 48 hours after confirmation.
Remote Diagnosis
Video-guided troubleshooting and parameter support across time zones.
Installation & Training
Overseas commissioning, accuracy verification and operator training available.
