VMC-850

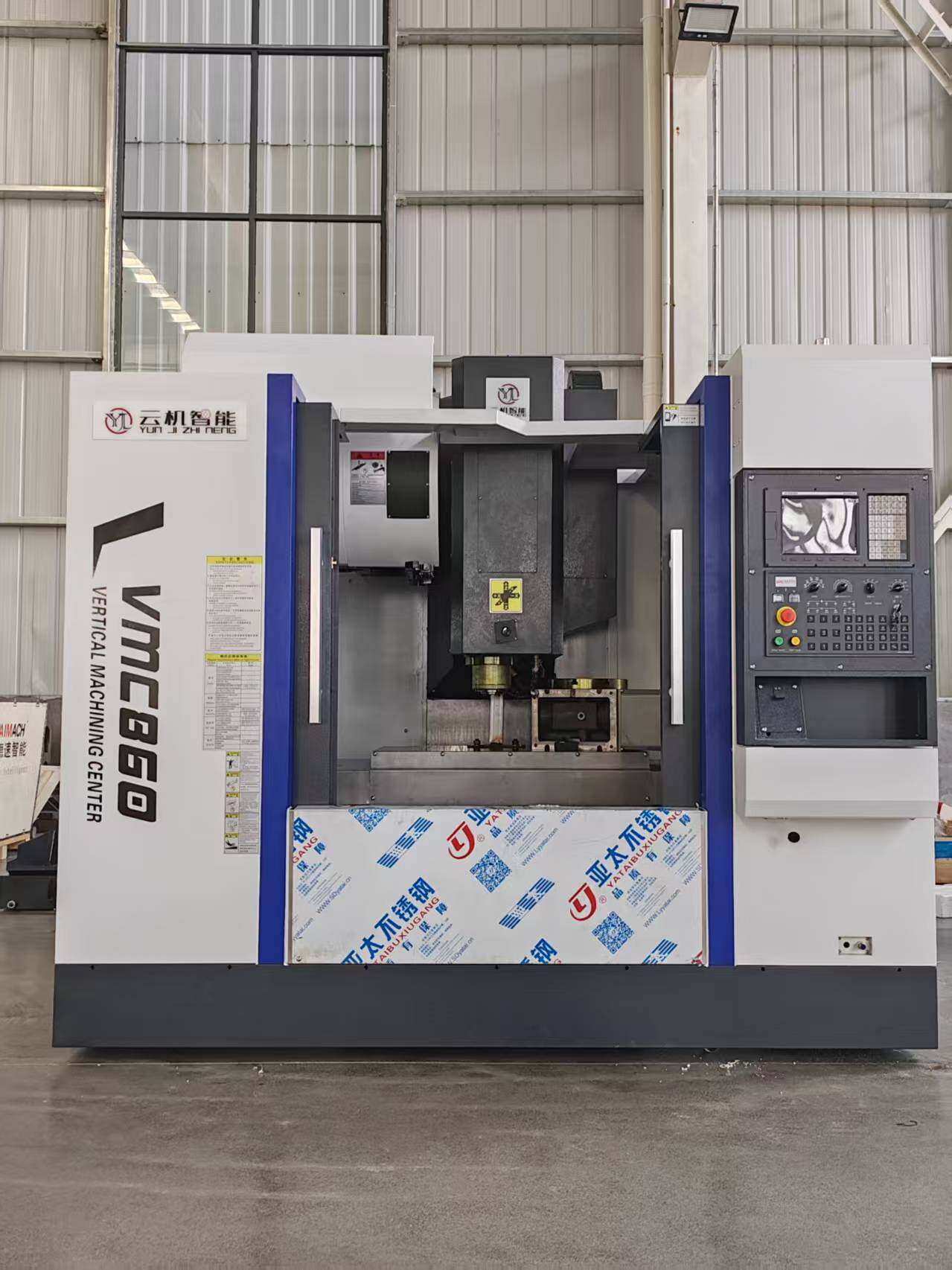

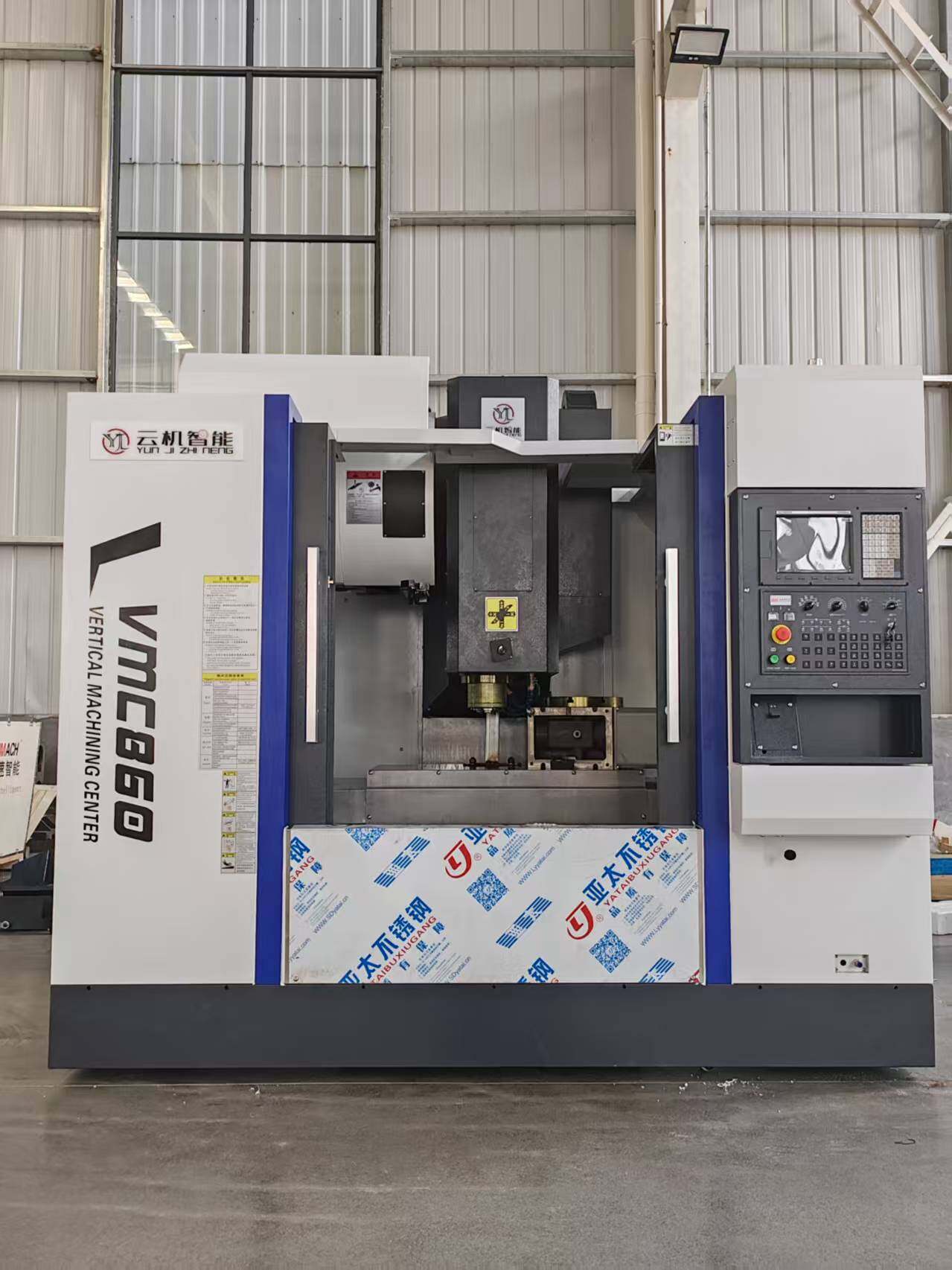

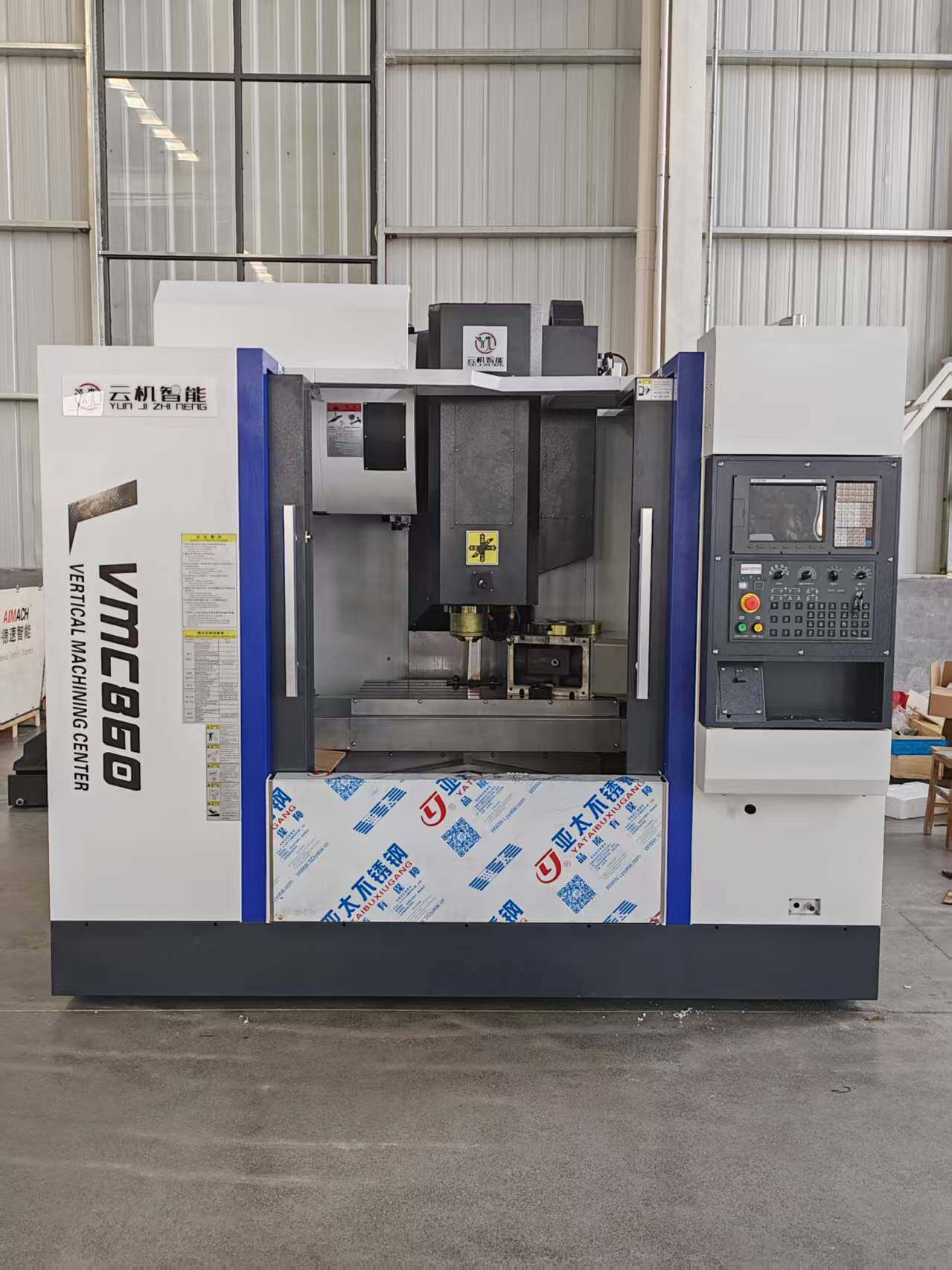

Vertical Machining Center VMC-850
Rigid cast iron structure24-tool arm magazineLinear guideways
Popular 3-axis vertical machining center for molds, plates and general precision milling.
800/500/550 mm
Travel X/Y/Z
8000 rpm
Spindle
1000×500 mm
Table
Technical Specifications
- X Axis Travel
- 800 mm
- Y Axis Travel
- 500 mm
- Z Axis Travel
- 550 mm
- Spindle Speed
- 8000 rpm
- Spindle Taper
- BT40
- Spindle Motor
- 7.5 / 11 kW
- Rapid Traverse X/Y/Z
- 24 / 24 / 20 m/min
- Table Size
- 1000 × 500 mm
- Max. Table Load
- 600 kg
- Positioning Accuracy
- ±0.008 mm
- Repeatability
- ±0.004 mm
- Tool Magazine
- 24 tools, arm type
Standard Configuration
- Arm type tool magazine
- Linear guideways on 3 axes
- Full enclosure with safety interlocks
- Automatic lubrication and coolant system
- Rigid tapping
- Chip conveyor and work light
Optional Configuration
- 4th axis rotary table
- Tool presetter and workpiece probe
- Through-spindle coolant
- Oil skimmer
- Fanuc / Siemens / Mitsubishi control system
- Spindle chiller
Service & Warranty
12-Month Warranty
Covering machine structure, spindle and control system from commissioning date.
Spare Parts Supply
Common wear parts in stock, dispatched within 48 hours after confirmation.
Remote Diagnosis
Video-guided troubleshooting and parameter support across time zones.
Installation & Training
Overseas commissioning, accuracy verification and operator training available.
