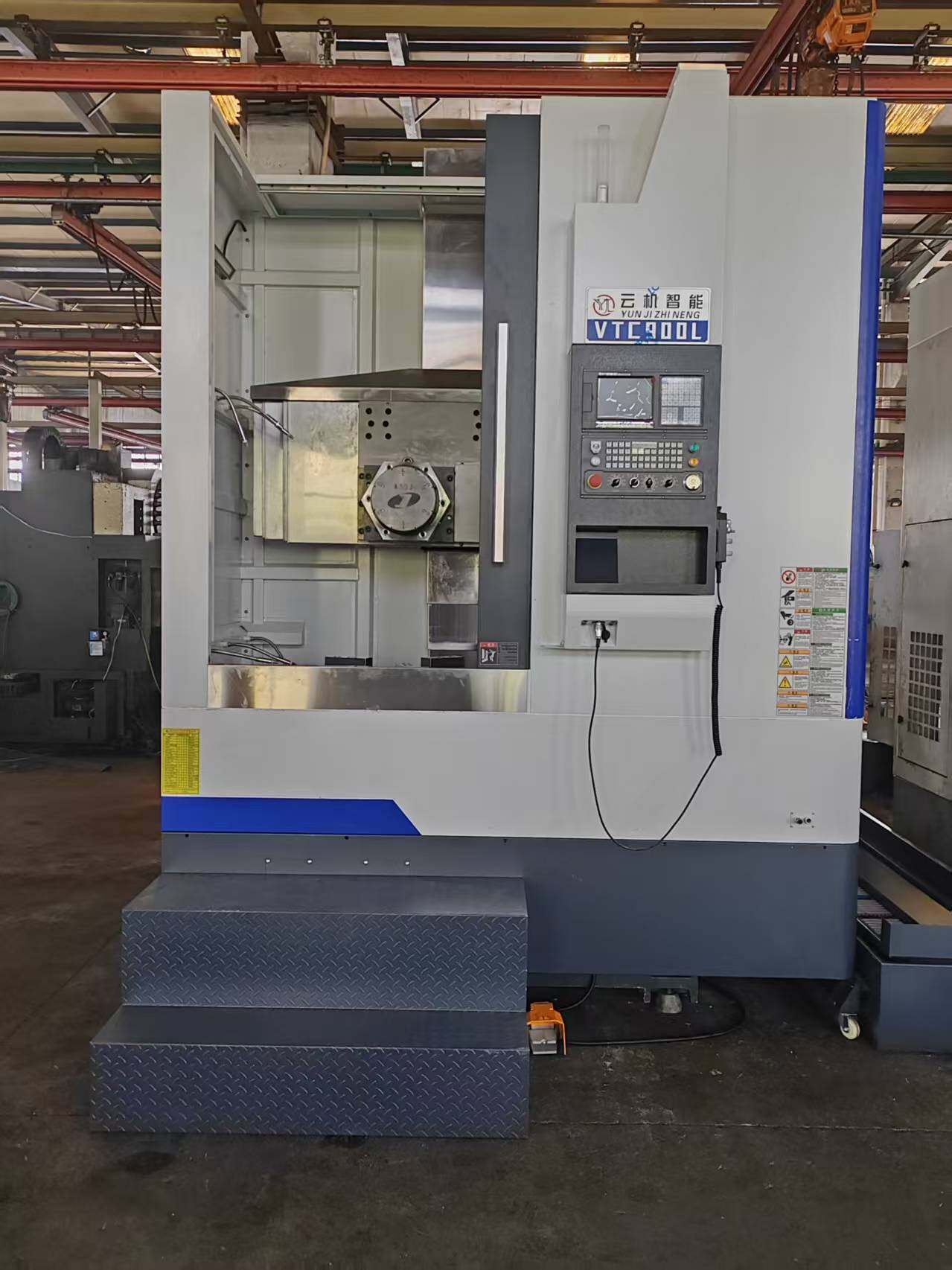

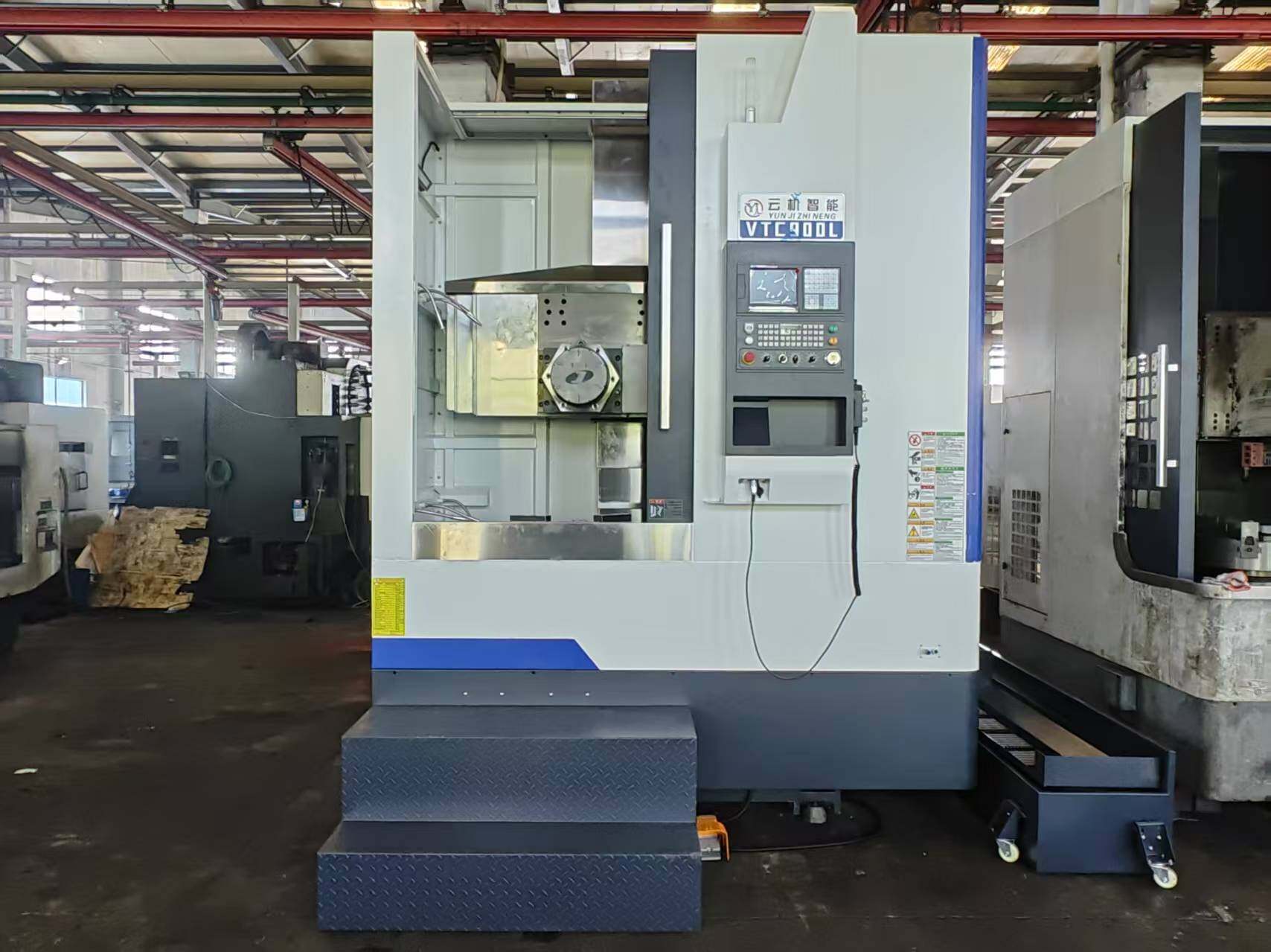

VTC900
Vertical Turning Center VTC900
Ø900 mm turningHigh load tableStable long-run accuracy
Vertical CNC lathe for 900 mm class large rings, housings and energy components.
Ø900 mm
Turning Diameter
550 mm
Turning Height
1250 rpm
Spindle
Technical Specifications
- Max. Turning Diameter
- Ø900 mm
- Max. Turning Height
- 550 mm
- Worktable Diameter
- Ø800 mm
- Spindle Speed
- 1250 rpm
- Max. Table Load
- 2000 kg
- Chuck
- Hydraulic chuck Ø800 mm
- Rapid Traverse X / Z
- 8 / 6 m/min
- Turret Stations
- 8 / 12 stations
- Tool Holder
- Square / Round tool post
- Positioning Accuracy
- ±0.010 mm
- Repeatability
- ±0.005 mm
- Main Motor Power
- 22 kW
Standard Configuration
- Vertical spindle with rotary worktable
- Hydraulic turret
- Full enclosure guard
- Automatic lubrication and coolant system
- Chip conveyor
- Work light
Optional Configuration
- Live tooling with C axis
- Tool presetter and probe
- Through-tool coolant
- Fanuc / Siemens control system
Service & Warranty
12-Month Warranty
Covering machine structure, spindle and control system from commissioning date.
Spare Parts Supply
Common wear parts in stock, dispatched within 48 hours after confirmation.
Remote Diagnosis
Video-guided troubleshooting and parameter support across time zones.
Installation & Training
Overseas commissioning, accuracy verification and operator training available.
Related Machines
Send Inquiry for VTC900
Include your part material, size, tolerance and monthly quantity so we can confirm the configuration and lead time accurately.
